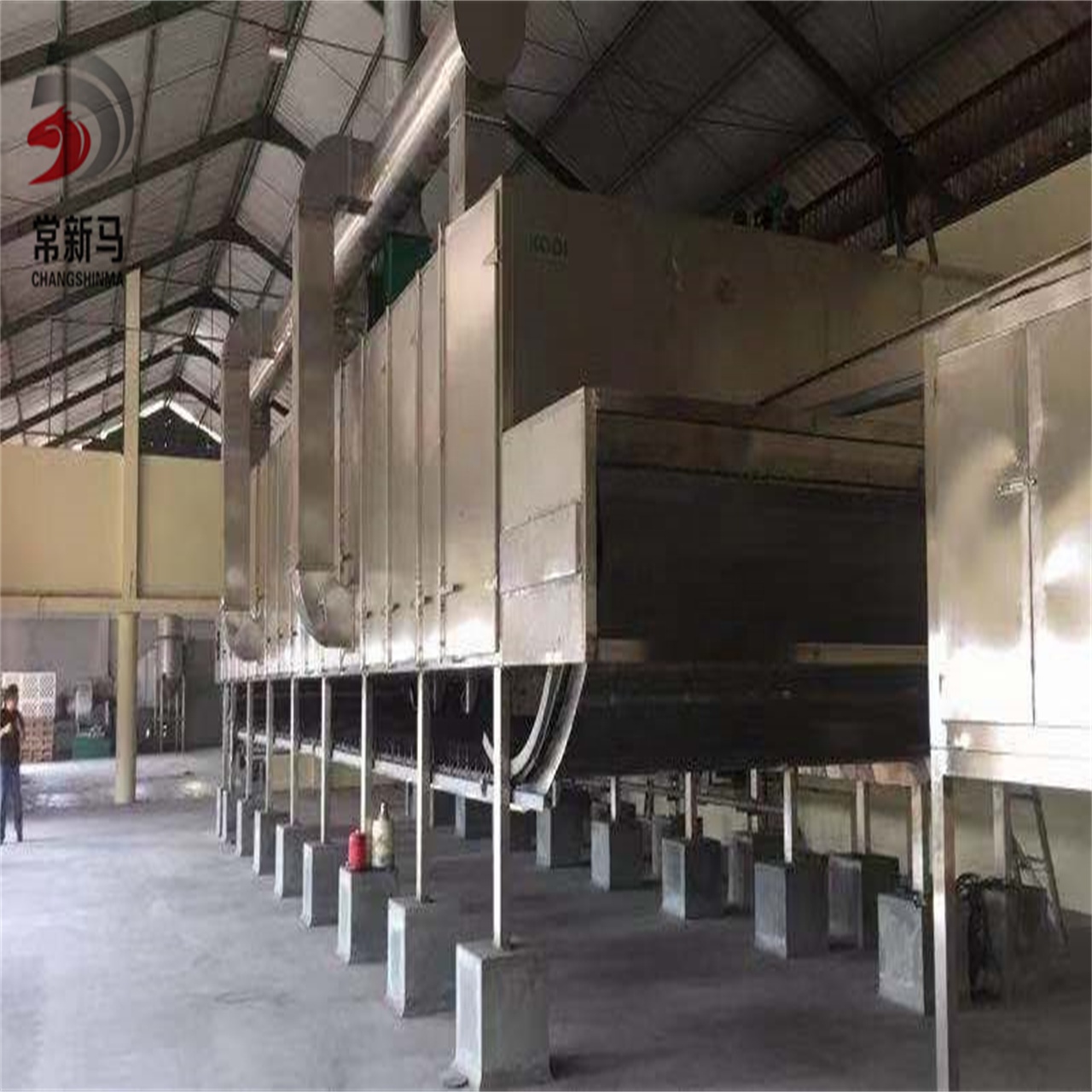

21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer

Place of Origin : Jiangsu, China

Brand Name : Shinma

Certification : ISO9001,ISO14001

Packaging Details : As per customer's requirement

Supply Ability : 20 Set/Sets per Year

Price : $13,000.00 - $220,000.00/sets

Type : belt dryer

Application : Medicine Processing, Chemicals Processing, Food Processing

Condition : New

Dimension(L*W*H) : 21.56m*2.32m*2.5m

Key Selling Points : Automatic

Warranty : 1 Year

Weight (KG) : 14000

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Farms

Showroom Location : None

Marketing Type : Other

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Pump, Gear, Motor, Gearbox, PLC

Heating Method : Steam Heating

Material : SUS304, SUS304L, SUS316, SUS316L, Other, all SUS304, SUS316L

Heating : steam, oil, electricity, natural gas

After-sales Service Provided : Online support, Video technical support, Free spare parts, Field installation, commissioning and training

After Warranty Service : Video technical support, Online support, Spare parts

Local Service Location : None

Port : Shanghai

Contact Now

other food processing machinery potato continuous belt dryer machine drying equipment



other food processing machinery potato continuous belt dryer machine drying equipment

The raw materials to be treated should distribute on the conveyer belt through suitable mechanism such as star distributor, swing belt, crusher or granulator, the conveyer passes through the channel including of one or several heating unit. Each heating unit is equipped with air heater and circle system. Each channel has one or several damp discharge systems. When the conveyer passes through it, hot air will pass through the raw material from up to low or from low to up. In this way raw materials can be dried evenly.
FEATURES AT A GLANCE

According to the character that fresh coconut contains water, when belt dryer used for drying, the critical water content is
about 15%, that is constant speed drying is used before reaching the critical water content to remove free water, and after
reaching the critical water content, Speed droop dehydration is used to remove the bound water.

According to the general rules, an assembly line should have three working section ,they are pre-dry(1)constant speed dehydration
(2) Speed droop dehydration(3).During the process (1)and (2) 80% water can be removed, the temperature of raw material will be kept as hot and wet bulb temperature. During the process of (3)20% water can be removed, the temperature of raw material is close to the temperature of exhausted hot air .

PRODUCT SPECIFICATIONS
No
Item
Data
1
moisture evaporation amount
400kg/h
2
operation temputure
 50-140℃(designed as 90℃)
3
Initial water contentω1
Finial water contentω2
49%-54%(design as 54%)
 ≤3%(design as 3% )
4
Heating source
steam (0.6MPa)
5
Steam consume
450-1200kg/h
6
Equipment oversize
21560(L)*2320(W)*2500(H)
7
Power equipped
36.8kw
8
Total weight
Around 14 T

21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer

Other model technical parameters
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
Sketch of Flow Chart
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
Why Choose Us
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer


21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
Customer Photos
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
21.56m X 2.32m X 2.5m Continuous Conveyor Belt Dryer
